Hitachi Nico Transmission Co.,Ltd.

MGX 293D

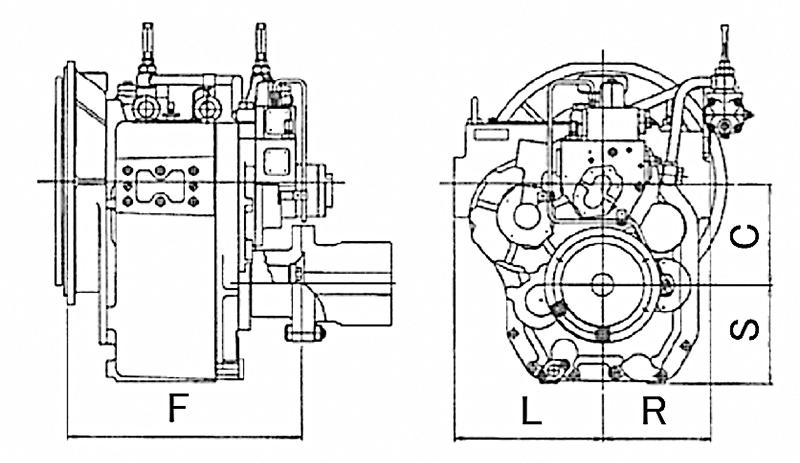

Dimension

SAE	F	L	R	C	S	A	Mass (Dry)
SAE	mm	mm	mm	mm	mm	deg.	kg
0, 1	592	340	340	220	235		460

Rating

Continuous Medium Intermediate(3000Hr) Light Pleasure Craft

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74	560(750)	889(1191)	1200	2500
2.04, 2.19, 2.45	547(732)	869(1164)	1200	2500
2.82	462(619)	786(1053)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74	560(750)	889(1191)	1200	2500
2.04, 2.19, 2.45	547(732)	869(1164)	1200	2500
2.82	462(619)	786(1053)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74, 2.04, 2.19	588(787)	930(1246)	1200	2500
2.45	549(735)	930(1246)	1200	2500
2.82	474(635)	840(1125)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74, 2.04, 2.19	588(787)	930(1246)	1200	2500
2.45	549(735)	930(1246)	1200	2500
2.82	474(635)	840(1125)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74, 2.04	588(787)	1058(1417)	1200	2500
2.19, 2.45	567(759)	1013(1357)	1200	2500
2.82	489(655)	916(1227)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74, 2.04	588(787)	1058(1417)	1200	2500
2.19, 2.45	567(759)	1013(1357)	1200	2500
2.82	489(655)	916(1227)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74	673(901)	1309(1754)	1200	2500
2.04, 2.19	667(893)	1298(1739)	1200	2500
2.45	613(821)	1234(1653)	1200	2500
2.82	547(732)	1104(1479)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66, 1.74	673(901)	1309(1754)	1200	2500
2.04, 2.19	667(893)	1298(1739)	1200	2500
2.45	613(821)	1234(1653)	1200	2500
2.82	547(732)	1104(1479)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66	758(1015)	1540(2063)	1200	2500
1.74, 2.04, 2.19	740(991)	1540(2063)	1200	2500
2.45	701(939)	1460(1956)	1200	2500
2.82	603(808)	1257(1684)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.07, 1.30, 1.50, 1.66	758(1015)	1540(2063)	1200	2500
1.74, 2.04, 2.19	740(991)	1540(2063)	1200	2500
2.45	701(939)	1460(1956)	1200	2500
2.82	603(808)	1257(1684)	1200	2500
