Hitachi Nico Transmission Co.,Ltd.

MGNV 353B-C

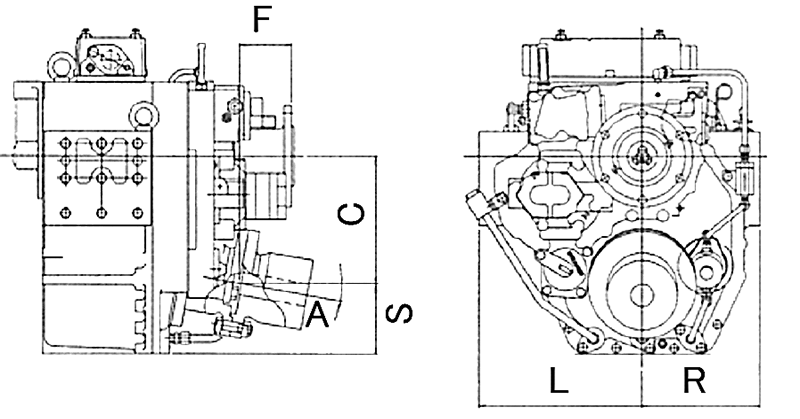

Dimension

SAE	F	L	R	C	S	A	Mass (Dry)
SAE	mm	mm	mm	mm	mm	deg.	kg
	167	340	340	315.9	184.1	10	545

Rating

Continuous Medium Intermediate(3000Hr) Light Pleasure Craft

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55	666(892)	1114(1492)	1200	2500
1.72	645(864)	1078(1444)	1200	2500
2.09	612(820)	1023(1370)	1200	2500
2.28, 2.42	594(795)	993(1330)	1200	2500
2.73	540(723)	903(1210)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55	666(892)	1114(1492)	1200	2500
1.72	645(864)	1078(1444)	1200	2500
2.09	612(820)	1023(1370)	1200	2500
2.28, 2.42	594(795)	993(1330)	1200	2500
2.73	540(723)	903(1210)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55	712(954)	1191(1595)	1200	2500
1.72	689(923)	1152(1543)	1200	2500
2.09	654(876)	1094(1465)	1200	2500
2.28, 2.42	635(850)	1062(1423)	1200	2500
2.73	578(774)	966(1294)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55	712(954)	1191(1595)	1200	2500
1.72	689(923)	1152(1543)	1200	2500
2.09	654(876)	1094(1465)	1200	2500
2.28, 2.42	635(850)	1062(1423)	1200	2500
2.73	578(774)	966(1294)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55	736(986)	1298(1739)	1200	2500
1.72	736(986)	1256(1683)	1200	2500
2.09	713(955)	1192(1597)	1200	2500
2.28, 2.42	693(928)	1158(1551)	1200	2500
2.73	630(844)	1053(1411)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55	736(986)	1298(1739)	1200	2500
1.72	736(986)	1256(1683)	1200	2500
2.09	713(955)	1192(1597)	1200	2500
2.28, 2.42	693(928)	1158(1551)	1200	2500
2.73	630(844)	1053(1411)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55, 1.72	748(1002)	1546(2071)	1200	2500
2.09, 2.28, 2.42	748(1002)	1426(1910)	1200	2500
2.73	729(976)	1296(1736)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55, 1.72	748(1002)	1546(2071)	1200	2500
2.09, 2.28, 2.42	748(1002)	1426(1910)	1200	2500
2.73	729(976)	1296(1736)	1200	2500

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55, 1.72, 2.09, 2.28, 2.42	817(1094)	1702(2280)	1200	2500
2.73	776(1039)	1558(2087)	1200	2500

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.55, 1.72, 2.09, 2.28, 2.42	817(1094)	1702(2280)	1200	2500
2.73	776(1039)	1558(2087)	1200	2500
