Hitachi Nico Transmission Co.,Ltd.

MGNV 123

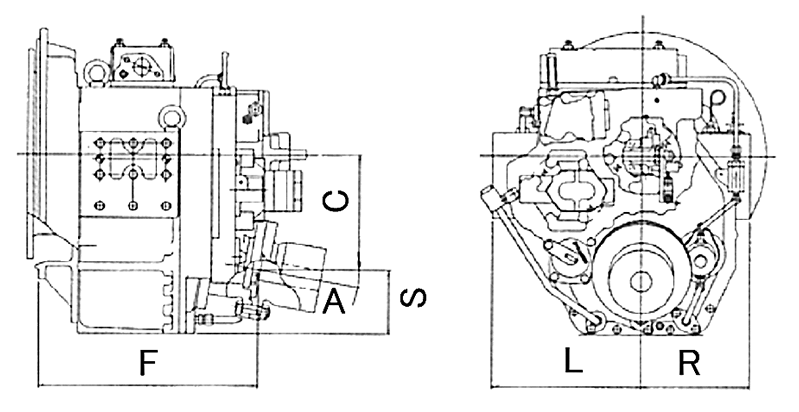

Dimension

SAE	F	L	R	C	S	A	Mass (Dry)
SAE	mm	mm	mm	mm	mm	deg.	kg
3	356.1	270	220	224.9	130.1	10	180

Rating

Continuous Medium Intermediate(2000Hr) Light Pleasure Craft

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53	217(290)	434(581)	1600	3200
2.03	217(290)	408(546)	1600	3200
2.46	217(290)	373(499)	1600	3200
2.96	195(261)	364(487)	1600	3200

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53	217(290)	434(581)	1600	3200
2.03	217(290)	408(546)	1600	3200
2.46	217(290)	373(499)	1600	3200
2.96	195(261)	364(487)	1600	3200

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53	217(290)	434(581)	1600	3200
2.03	217(290)	434(581)	1600	3200
2.46	217(290)	399(534)	1600	3200
2.96	200(268)	389(521)	1600	3200

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53	217(290)	434(581)	1600	3200
2.03	217(290)	434(581)	1600	3200
2.46	217(290)	399(534)	1600	3200
2.96	200(268)	389(521)	1600	3200

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53, 2.03	217(290)	434(581)	1600	3200
2.46	217(290)	434(581)	1600	3200
2.96	207(277)	414(554)	1600	3200

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53, 2.03	217(290)	434(581)	1600	3200
2.46	217(290)	434(581)	1600	3200
2.96	207(277)	414(554)	1600	3200

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53, 2.03, 2.46	217(290)	434(581)	1600	3200
2.96	208(278)	415(556)	1600	3200

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53, 2.03, 2.46	217(290)	434(581)	1600	3200
2.96	208(278)	415(556)	1600	3200

Primary / Rotation direction : Input≠Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53	263(352)	526(704)	1600	3200
2.03	253(339)	506(678)	1600	3200
2.46	246(329)	492(659)	1600	3200
2.96	221(296)	442(592)	1600	3200

Secondary / Rotation direction : Input=Output

Gear Ratio	kW(HP)		Speed (min^-1)
Gear Ratio	Min.	Max.	Min.	Max.
1.53	263(352)	526(704)	1600	3200
2.03	253(339)	506(678)	1600	3200
2.46	246(329)	492(659)	1600	3200
2.96	221(296)	442(592)	1600	3200
