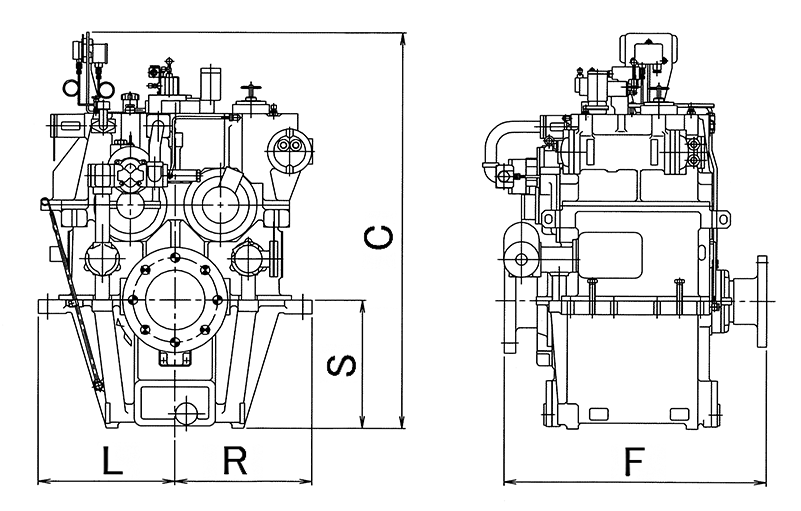

| SAE | F | L | R | C | S | A | Mass (Dry) |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | deg. | kg | |
| - | 2100 | 900 | 900 | 2300 | 750 | 10000 |
| Gear Ratio | kW(HP) | Speed (min-1) | ||
|---|---|---|---|---|
| Min. | Max. | Min. | Max. | |
| 3.26, 3.50, 3.63, 3.77 | 2295(3075) | 3200(4288) | 600 | 900 |
| 3.89, 4.00 | 2139(2866) | 3200(4288) | 600 | 900 |
| 4.25, 4.38 | 1955(2619) | 2933(3930) | 600 | 900 |
