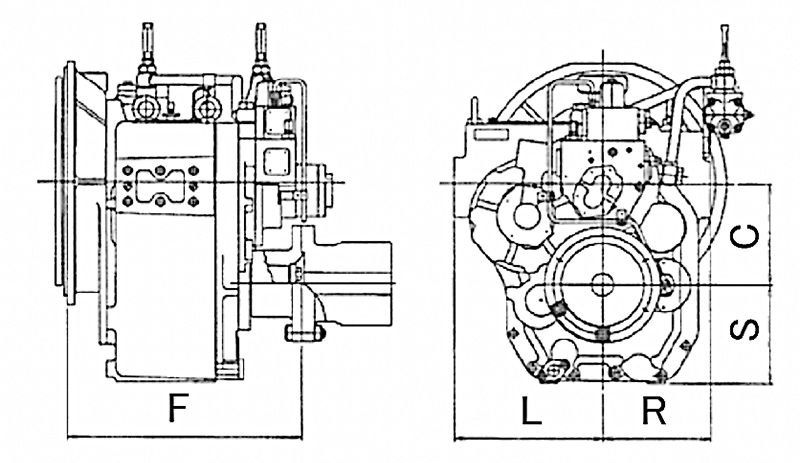

| SAE | F | L | R | C | S | A | Mass (Dry) |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | deg. | kg | |
| 0, 1 | 532 | 440 | 440 | 415 | 415 | 920 |
| Gear Ratio | kW(HP) | Speed (min-1) | ||
|---|---|---|---|---|
| Min. | Max. | Min. | Max. | |
| 4.88, 5.67, 6.14, 6.69 | 312(418) | 610(817) | 1200 | 2350 |
| 7 | 298(399) | 583(781) | 1200 | 2350 |
| Gear Ratio | kW(HP) | Speed (min-1) | ||
|---|---|---|---|---|
| Min. | Max. | Min. | Max. | |
| 4.88, 5.67, 6.14, 6.69 | 312(418) | 467(625) | 1200 | 2350 |
| 7 | 254(340) | 467(625) | 1200 | 2350 |
